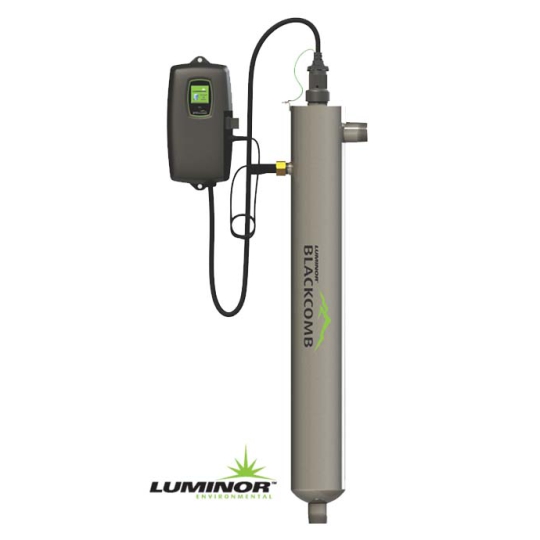

Bộ đèn UV Luminor Blackcomb-HO 6.1

• Allows for a solenoid connection on LUMINOR BLACKCOMB (5.1 and 6.1 only) products (will work on lamp failure only on LUMINOR 5.1 systems)
• Customer simply needs to purchase a NORMALLY CLOSED line voltage solenoid valve and affix the module’s supplied bare lead cord to the solenoid valve
• Connect power cable to electrical outlet and the other lead to the “future-proof” expandability port on the controller

• Allows for a 4-20mA connection on LUMINOR BLACKCOMB (5.1 and 6.1 only) products
• This device will allow for a 4-20mA signal transfer of the UV output to a remote device such as a data logger or computer
• Simply plug the supplied into the IEP expandability port on the UV sensor module (or daisy chain to any other module used in the system
• No wire is supplied with this system, however 16-22 AWG is required

• Allows for a remote connection on LUMINOR BLACKCOMB (5.1 and 6.1 only) products
• Allows for the remote installation of alarms, lights, PLC input, data logger, flow control, etc.
• Simply plug the supplied into the IEP expandability port on the UV sensor module (or daisy chain to any other module used in the system
• Supplied with three screw terminals (NO, NC & common) to connect to the receiving end of the dry contacts
• As the distance required is unknown, no wire is supplied with the system, however 16-22 AWG is required

• Wireless remote monitoring within the home….works on  all LUMINOR (both 5.1 and 6.1) products
• Integral audible alarm and visual indicators for “GOOD”, “CAUTION”, and “ALARM” conditions
• Hard wire option only (wall wart) (battery option to follow)
• Supplied with both the receiver and transmitter which is connected to the IEP port of the controller as are other modules
• Flexible mounting configurations
• Can install up to 5 receivers per transmitter

• Integrated WiFi solution for WEB, ANDROID, and iOS (Apple)
• GUI interface matches current UV display for brand recognition
• Easy set-up and login with integrated QR codes
• Data logging capabilities (i.e. UV output over time)
• Safe & protected, cloud-based data management
• Monitor just one system, or ALL the systems that you may service
• FCC compliance

LUMINOR’s ULTRASONIC FLOW METER provides accurate, real-time flow monitoring using a technology that provides failsafe operation. When the system senses “no-flow” or "low-flow" conditions, a signal is sent to the main controller and automatically reduces the power output to the UV lamp, thereby reducing the overall power consumption. Benefits include energy savings, reduced quartz sleeve fouling and cooler operating temperatures.
